Basal reinforcement with ArmaLynk: stability from the ground up
ArmaLynk by Geoquest is a high-performance geogrid solution engineered for basal reinforcement in demanding ground conditions. Designed to deliver strength and durability, ArmaLynk geogrids help build embankments and platforms over the most challenging soils. From embankments over soft soils, to rigid inclusions, or void-prone ground, ArmaLynk provides the dependable support you need to build with confidence.
Why choose ArmaLynk?
Exceptional tensile strength for high-load conditions,
Chemical resistance in aggressive soils,
Long-term durability for a design life of over 100 years,
Easy to install rolls for faster construction and reduced equipment needs.
Applications of ArmaLynk geogrids

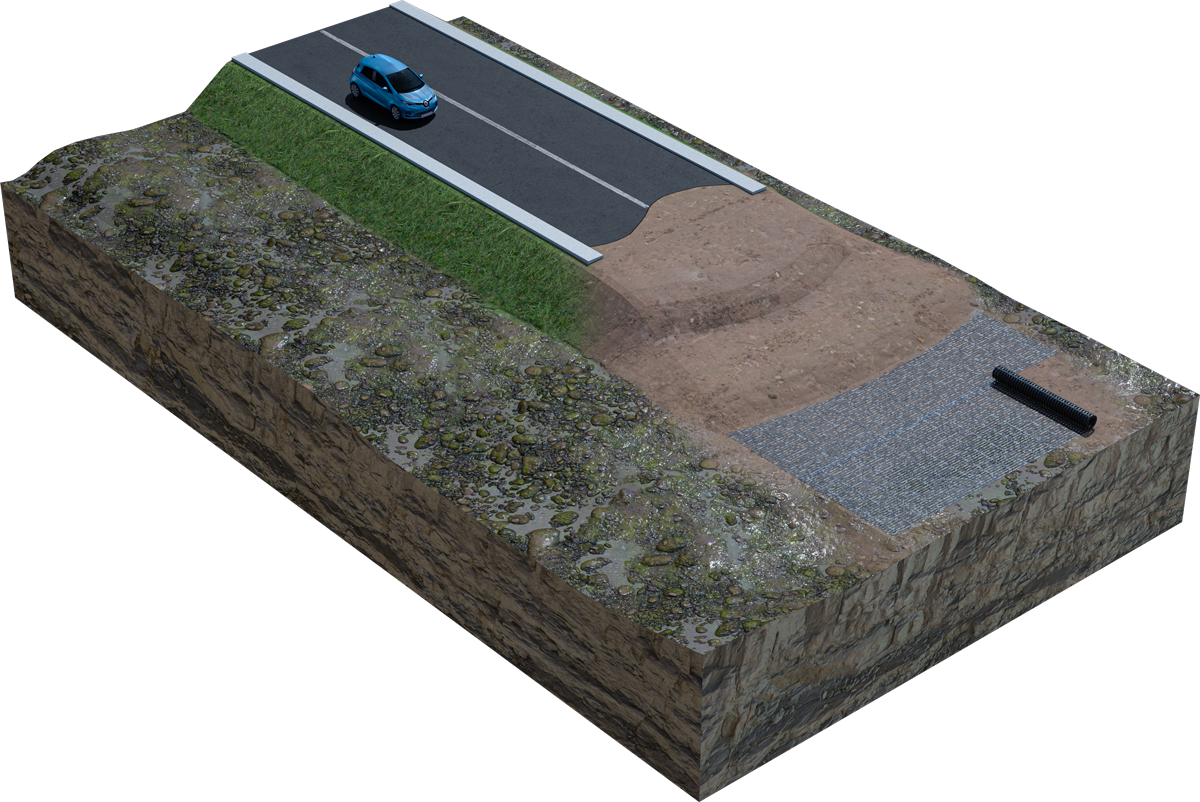

Embankments over soft soils
Soft, compressible soils pose serious challenges for embankment construction. ArmaLynk geogrids allows for safer and faster construction. Used beneath embankments, these high-strength geogrids distribute loads efficiently, reduce differential settlement, and mitigate the risk of slope failure.

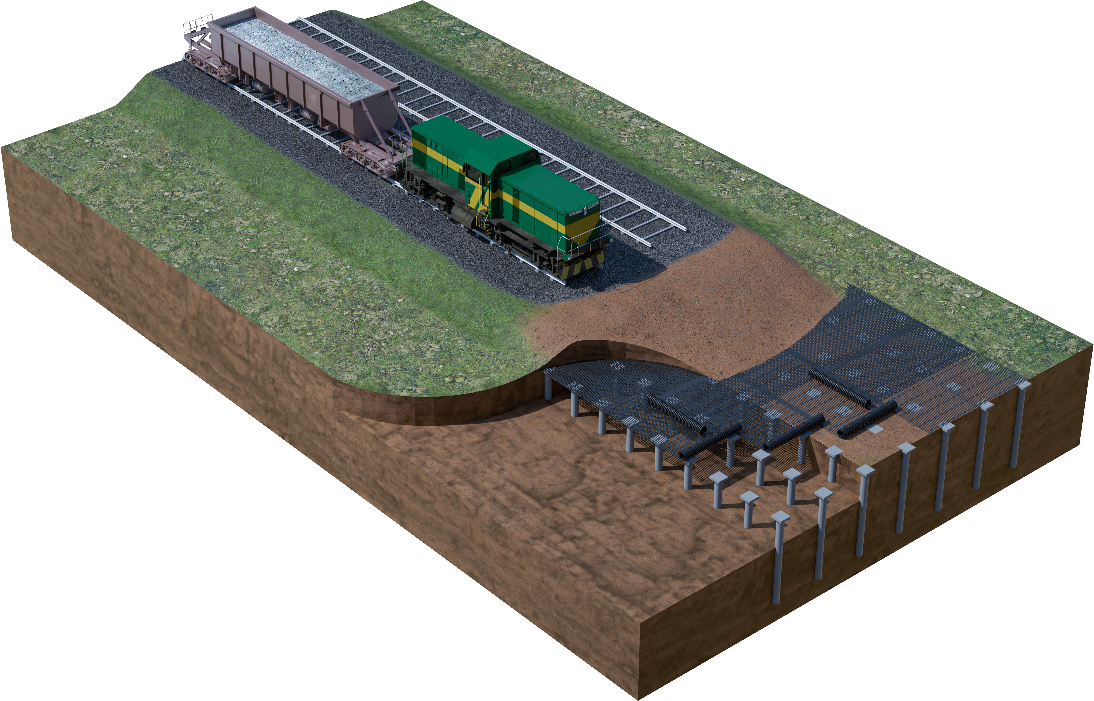

Embankments over rigid inclusions
When rigid inclusions (such as stone columns or controlled modulus columns) are used to strengthen foundation soils, ArmaLynk ensures uniform pressure transfer and minimizingminimizes stress concentration between columns. This reinforcement technique maximizes the effectiveness of inclusions while reducing fill thickness and improving overall performance.

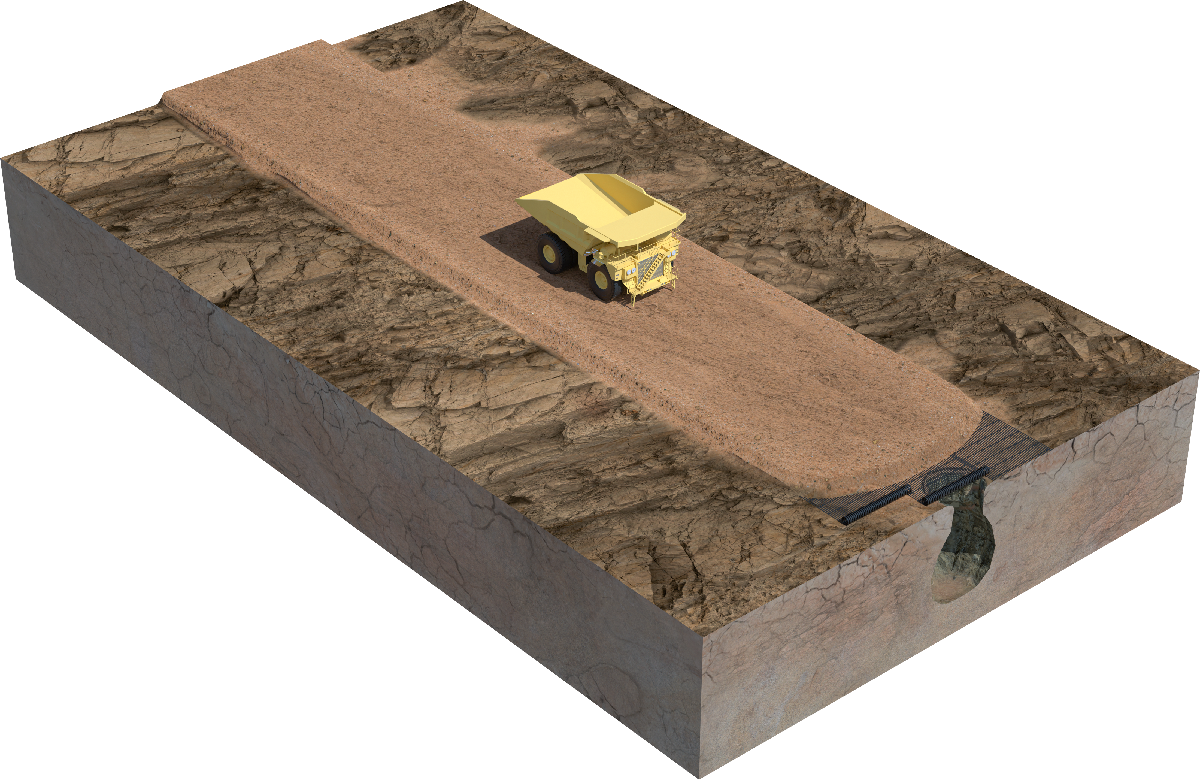

Void bridging
In karstic regions, former mining zones, or areas with potential sinkholes, void bridging becomes essential to safeguard infrastructure. ArmaLynk geogrids provide tensile reinforcement capable of spanning potential cavities and maintaining structural integrity even under sudden load shifts or ground collapse. Whether used alone or in combination with load transfer platforms, ArmaLynk adds a critical layer of safety in uncertain ground conditions.
Design your basal reinforcement project online, in minutes
Design embankments over soft soils with our free online basal reinforcement design tool. Enter your project data and instantly calculate the required geogrid strength and anchorage lengths.
1Enter your project data
Input embankment geometry, soft soil depth, fill and foundation soil properties, surcharge loads, and design parameters.
2Run stability checks
Automatically verify local slope stability, lateral sliding, and foundation extrusion. The required geogrid tensile strength is calculated based on your selected design factors.
3Export your project files
Generate a PDF pre-design report including recommended ArmaLynk grade, reinforcement lengths, anchorage requirements, and estimated carbon footprint.
More basal reinforcement pre-design apps coming soon
Basal reinforcement over rigid inclusionsEmbankments over piles and rigid inclusions.Available soon
Void bridgingEmbankments over subsidence, sinkholes and voids.Available soon
Your pre-designs are saved to your Geoquest Design account and can be shared with our engineers whenever you need a full design review.
